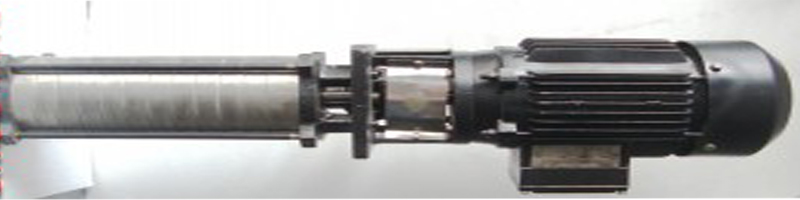

Multistage coolant pumps (MPS Series)



Multi Stage Coolant Pumps (MSC Series )

sdcsz

PERFORMANCE DATA OF MPS – 2
PUMP MODEL MOTOR POWER KW / HP FLOW IN LPM 17 18 25 32 38 45 50 55
MPS 2-20 0.37 / 0.5 HEAD IN METER BLACK AT 2900 RPM 18 17 16 15 13 12 10 8
MPS 2-30 0.37 / 0.5 27 56 24 22 20 18 15 12
MPS 2-40 0.55 / 1 26 35 33 30 26 24 20 16
MPS 2-50 0.55 / 1 45 43 40 37 33 30 24 20
MPS 2-60 0.75 / 1 53 52 50 45 40 36 30 24
MPS 2-70 0.75 / 1 63 61 57 52 47 41 35 28
MPS 2-90 1.1 / 1.5 80 78 73 67 67 54 45 37
MPS 2-110 1.1 / 1.5 98 95 89 82 73 64 54 44
MPS 2-130 1.5 / 2 116 114 106 98 89 78 65 52
MPS 2-150 1.5 / 2 134 130 123 112 100 90 73 60
MPS 2-180 2.2 / 3 161 157 148 136 121 108 91 76
MPS 2-220 2.2 / 3 198 192 180 165 148 130 110 90
MPS 2-260 3.0 / 4 232 228 214 198 179 158 130 110
PERFORMANCE DATA OF MPS – 4
PUMP MODEL MOTOR POWER KW / HP FLOW IN LPM 17 18 25 32 38 45 50 55
MPS 4-20 0.37 / 0.5 HEAD IN METER BLACK AT 2900 RPM 19 18 17 15 13 10 8 6
MPS 4-30 0.37 / 0.5 28 27 26 24 20 18 13 10
MPS 4-40 0.55 / 1 38 36 34 32 27 24 19 13
MPS 4-50 0.55 / 1 47 45 43 40 34 31 23 17
MPS 4-60 0.75 / 1 56 54 52 48 41 37 28 20
MPS 4-70 0.75 / 1 66 63 61 56 48 43 33 24
MPS 4-80 1.1 / 1.5 74 72 70 64 55 50 38 27
MPS 4-100 1.1 / 1.5 96 90 87 81 71 62 48 34
MPS 4-120 1.5 / 2 114 108 104 95 85 75 58 41
MPS 4-140 1.5 / 2 136 126 122 112 101 89 68 48
MPS 4-160 2.2 / 3 152 144 140 129 115 101 78 55
MPS 4-190 2.2 / 3 183 171 168 153 137 122 93 67
MPS 4-220 3.0 / 4 211 200 192 178 160 138 108 79
